sawdust machine

A wood crusher for producing sawdust

Model: 500
Feed inlet size: 550*250 mm
Knife disc diameter: 500
Power: 18.5-22KW
Crushed materials: Wood, scraps, bamboo, straw, coconut shells

Table of Contents

• A wood crusher for producing sawdust
• What is a wood crusher?
• The characteristics of industrial wood crusher
• Technical principle of sawdust machine
• Multi functional crusher parameters: customizable
• Raw Materials and Applications of wood crusher machine Processing
• How to maintain the sawdust machine ？
• How to choose a suitable wood crusher
• Sawdust machine for sale: comprehensive recommendations

What is a wood crusher?

A wood crusher machine is a multifunctional device that can produce sawdust, wood chips, particles, and other effects. The crushing materials are diverse, with templates, branches, scraps, bamboo, logs, pine, poplar and other wood materials being crushed into sawdust in one go, with a maximum fineness of 60 mesh. It has the characteristics of low investment, low energy consumption, high production capacity, and convenient use.

Widely used in the material preparation section of small and medium-sized particle board and fiberboard production enterprises, it can also be used for the production of raw materials for sawdust pellet machines, charcoal machines, particle board, and density board.

The characteristics of industrial wood crusher

• Efficient and energy-saving
• The crushing efficiency can reach 1-6 tons per hour, with a large processing capacity, low unit energy consumption, and reduced operating costs.
• The motor drive structure has low noise and meets environmental protection requirements.
• Stable and durable
• The rotor is made of high hardness and wear-resistant materials, with long blade life and reduced replacement frequency.
• The rack structure is compact, with good sealing, reducing dust pollution, and ensuring production safety.
• easy to operate
• Humanized design, simple and easy to understand operation, and convenient maintenance (such as regular cleaning of debris and checking of bearing lubrication).
• The inclined design of the feed inlet ensures smooth material sliding and reduces the risk of material jamming
• Widely used
• Wood processing: providing raw materials for particleboard, fiberboard, and sawdust board.
• Biomass energy: producing biomass pellet fuel, charcoal, supporting power generation and heating.
• In the agricultural field, it is used as an edible mushroom culture medium, organic fertilizer additive, or livestock feed raw material.
• Paper industry: providing pulp raw materials to reduce production costs.

Technical principle of sawdust machine

• Double crushing mechanism
• Blade cutting: High precision cutting blades initially shred materials to ensure uniform particle size.
• High speed airflow impact: The rotation of the rotor generates high-speed airflow, which accelerates and repeatedly impacts the material in the airflow, achieving secondary crushing and micro material sorting, and increasing the crushing rate by more than 50%.
• Mesh control particle size: By changing the mesh size of different apertures, the particle size of the finished sawdust can be adjusted (15-500 mesh) to meet diverse needs.
• Multi stage crushing process
• The material enters the crushing chamber through the feeding port, and is sequentially transported by the chain plate, rolled by the roller, processed in the chamber, and graded and discharged through the sieve, ensuring strong fine crushing ability and high product quality.
• Structural composition

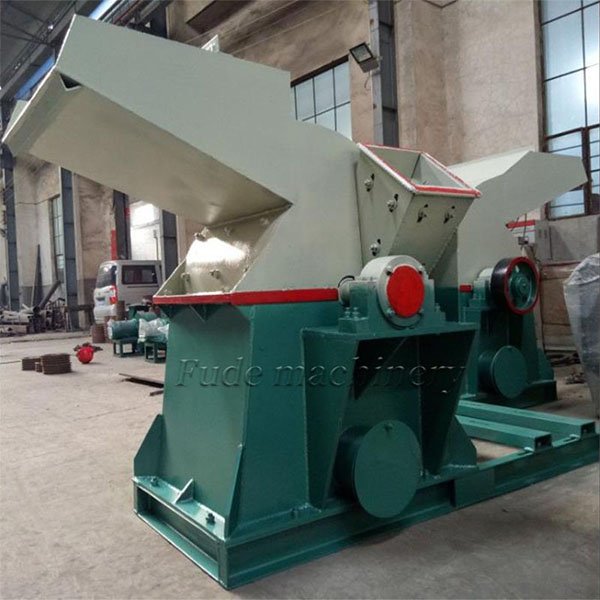

• Host: composed of rotor, upper body, and lower body, integrated with chip cutting device, crushing device, and fan.

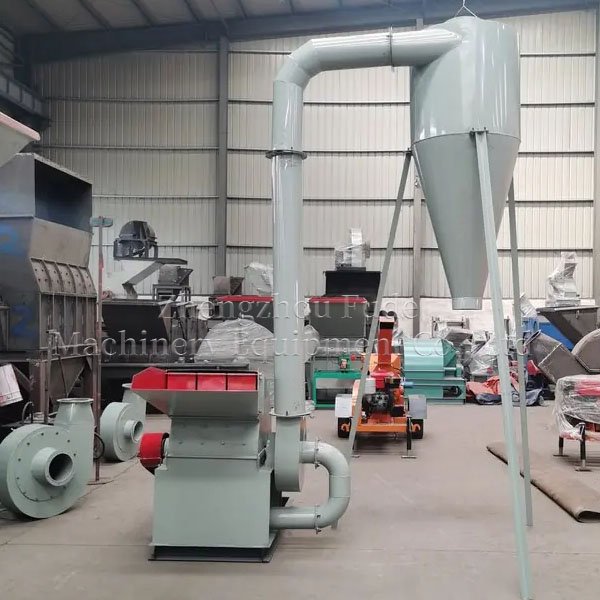

• Auxiliary system: equipped with analyzer, powder collector, dust collector, forming a continuous operation system to simplify the process.
• Power system: Supports electric motor (5.5-75kW) or diesel engine (15-75 horsepower) drive, suitable for fixed and mobile work scenarios.

Multi functional crusher parameters: customizable

Model	Number of hammer pieces	Hammer thickness （mm）	Material mouth diameter (mm)	Spindle speed (r/min)	Power (kW)	Fan (kW)	Capacity (kg/h)
500	32-40	6	500*200	2800	22	Integrated host	500-800
600	40-50	8	630*300	2600	30	Integrated host	800-1200
800	40-60	8	850*.350	2400	37	11	1000-1500
1000	40-70	8	1000*350	2200	75	11	1500-2500
1200	54-90	8	1300*400	2000	110	15	2500-4000

Raw Materials and Applications of wood crusher machine Processing

Sawdust crusher is an efficient and multifunctional wood processing equipment designed to crush wood waste (such as branches, wood chips, scraps, bark, bamboo, etc.) and fibrous materials (such as corn stalks, sorghum stalks, thatch, etc.) into uniform sawdust. Its core advantages lie in efficient crushing, uniform particle size, easy operation, and low maintenance costs. It is widely used in industries such as wood processing, biomass energy, furniture manufacturing, edible mushroom cultivation, and papermaking, helping enterprises achieve waste resource utilization and green production.

• Wood types: pine, miscellaneous wood, poplar, cedar and other logs, as well as branches and small diameter wood with a diameter of less than 120mm.
• Non wooden materials: fibrous materials such as bamboo, sugarcane, reeds, corn stalks, cotton stalks, etc.
• Waste utilization: building template scraps, waste wood, logging residues, etc., to achieve resource recycling.
• Industrial production application
• Edible mushroom culture medium: Crushed sawdust is an ideal substrate for mushroom cultivation.
• Board manufacturing: used as raw materials for particleboard, sawdust board, high-density board, and medium fiber board.
• Paper and pulp: Provide fiber raw materials to support pulp production.
• Biomass energy: converting sawdust into wood pellets, charcoal, or biomass fuel for power generation, heating, and industrial energy.
• Agriculture and Environmental Protection
• Soil improvement: Wood chips can enhance soil water permeability and retention, promoting plant growth.
• Organic fertilizer: Organic fertilizer is generated through composting and applied in agriculture and horticulture.
• Feed ingredients: Some wood chips can be used as animal feed additives after treatment.

How to maintain the sawdust machine ？

1. The bearings of the host bear all the load of the machine, so good lubrication has a great impact on the bearing life, which directly affects the service life and operating rate of the machine. Therefore, it is required that the injected lubricating oil be clean and sealed well.
2. Each fastening screw is prone to loosening and must be checked regularly. If there is any looseness, it should be tightened in a timely manner
3. Pay attention to checking the wear level of easily worn parts and promptly replace worn parts.
4. Regularly add lubricating oil to the friction position to ensure mechanical performance and lifespan.
5. If the bearing oil temperature rises, it should be stopped immediately to check the cause and eliminate it,
6. If there is any impact sound during the operation of the rotating gear, it should be immediately stopped for inspection and eliminated
7. After the machinery is not in use, it should be placed indoors and the sawdust inside the machinery should be cleaned to avoid affecting future use and production.

How to choose a suitable wood crusher

To choose the perfect wood chipper, you must clearly define your raw material, your desired output chip, and your required capacity. Answering these four questions will narrow down your options significantly and lead you to the right machine.

Do you need an electric motor or a diesel engine?
An electric motor is cheaper to run and maintain and produces zero emissions, making it perfect for a fixed installation in a factory or sawmill. A diesel engine offers complete portability, allowing you to take the machine directly to the worksite.

What is your raw material?
Be specific. Are you chipping 50cm diameter hardwood logs, or are you processing small, twisted orchard branches? The size and type of your wood will determine the required infeed opening and the power of the machine. A machine designed for softwood logs will struggle with dense, hard tropical wood.

What is your required hourly capacity?
How many tons per hour do you need to process to run a profitable business? Be realistic. It’s better to invest in a machine that can handle your peak needs than to constantly run a smaller machine at its absolute limit. We offer models ranging from a few tons per hour to over 50 tons per hour.

Sawdust machine for sale: comprehensive recommendations

---

Wood crusher is a specialized equipment in the field of wood processing. Its multifunctional characteristics bring convenience to customers and enhance the value of waste wood in multiple fields, such as:

• Small and medium-sized sheet metal enterprises: As the core equipment of the material preparation section, they provide stable high-quality sawdust raw materials.
• Edible mushroom planting base: on-site processing of sawdust to reduce transportation costs and ensure the freshness of the culture medium.
• Biomass energy plants: convert agricultural waste (such as corn stalks and sorghum stalks) into clean energy and achieve resource recycling.
• Individual processing households: flexible mobile operation mode to meet the production needs of commercial wood chips.

We are FUDE Machinery, a specialized manufacturer of wood processing equipment located in Zhengzhou, China. Since 2015, our 8,000 m² factory has produced high-quality, factory-direct machinery for over countries. We offer the full range of equipment, from wood chippers and crushers to complete pellet production lines and charcoal plants. Our team of 15 engineers is here to design a solution that works for you.

Contact us today for a free consultation and a detailed quote for your Sawdust crusher project

---
