small wood crusher machine

Table of Contents

• What is a wood crusher?
• Wood crusher: model introduction and customized parameter table
• The working principle of a wood crushing machine
• Product characteristics and advantages of sawdust crusher
• The core functions and uses of wood chippers
• Crusher for sale: how to choose the equipment that suits oneself

Wood crusher: model introduction and customized parameter table

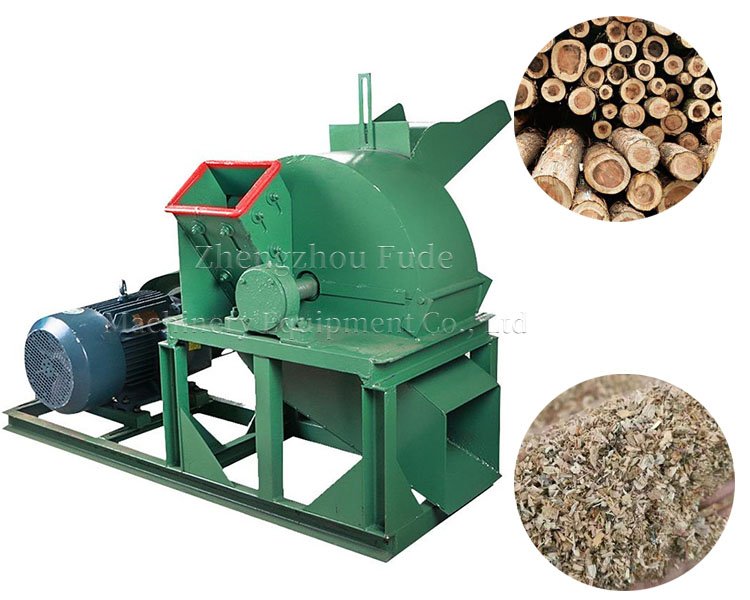

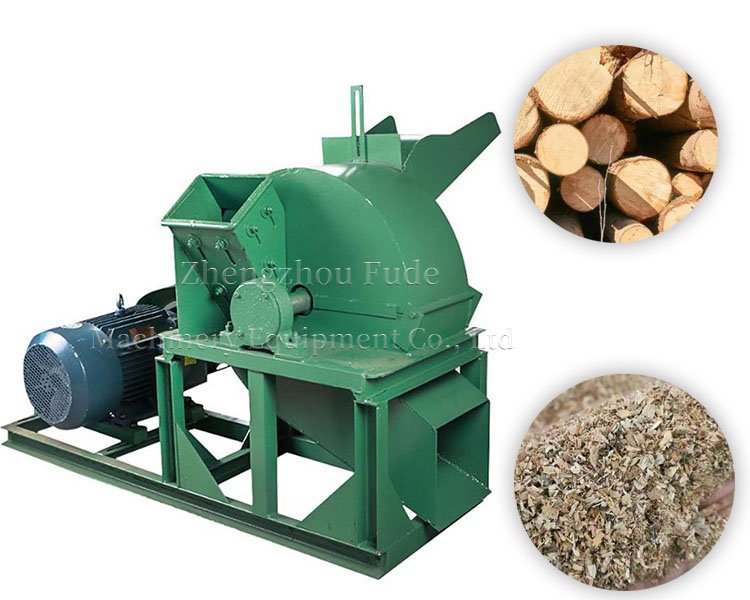

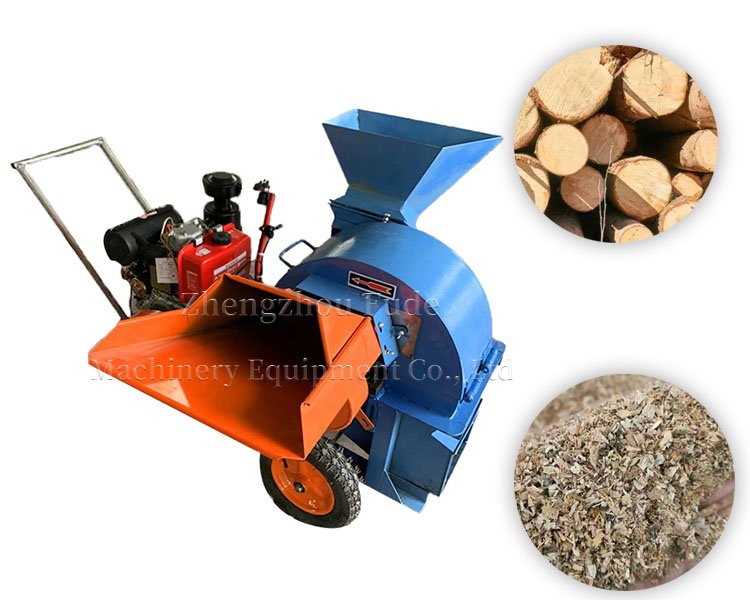

420 type wood crusher

Wood crusher (also known as sawdust machine, wood crusher) is an efficient and multifunctional woodworking machinery equipment

Model	Feed opening （mm）	Knife disc diameter （mm）	Blade size （mm）	Production (t)	Power (kW)	External dimensions （mm）
420	170*150	420	90*60*8	1	11	1200*550*750
550	200*170	500	120*70*8	1.2	15	1500*640*820
600	220*190	600	150*70*8	1.5	22	1500*700*900
700	230*190	610	150*70*8	1.8	30	1850*830*1050
1000	270*250	750	150*100*10	2-4	75+7.5	2000*1870*1500

wood chipper

Chipping machine is a specialized equipment in the field of wood processing, mainly used to cut raw materials such as wood, bamboo, veneer, and logging residues into uniform process wood chips.

Model	Inlet size (mm)	Blade diameter (mm)	Output (t/h)	Spindle speed (r/min)	Diesel engine power (HP)	Dimensions (mm)
600	210*200	600	4	1600	4100ZP	1010*850*830
1000	280*290	750	6	1500	4108ZP	1170*170*950
1200	420*400	1000	8	1200	6126ZP	1450*1620*1200

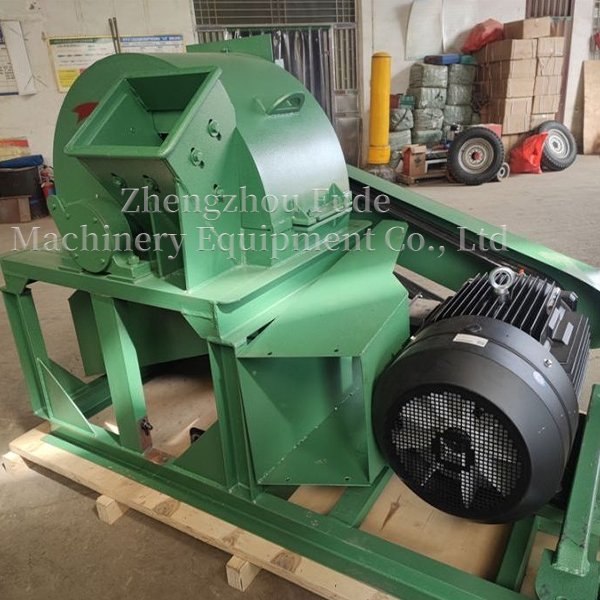

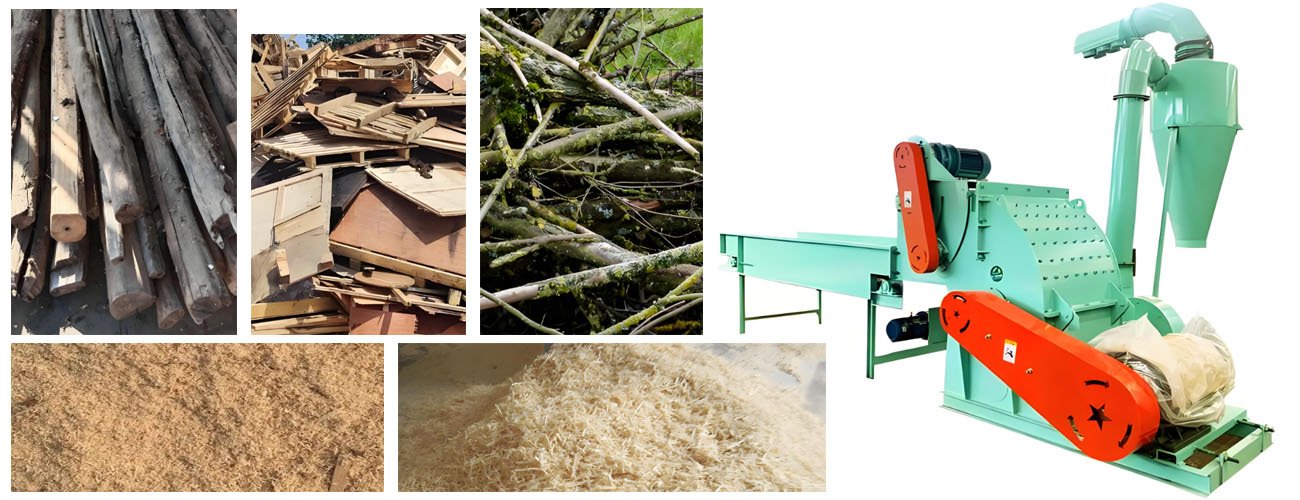

Sawdust crusher

The sawdust crusher can crush wood, branches, furniture factory scraps, wooden boards, plywood and other materials into sawdust at once. It is widely used in the material preparation section of small and medium-sized particle board and fiberboard production enterprises, as well as in the production of raw materials for sawdust pellet machines, charcoal machines, sawdust boards, and density boards.

Model	Number of hammer pieces (pieces)	Hammer thickness (mm)	Inlet diameter (mm)	Output (kg/h)
500	32-40	6	550*250	500-800
600	40-50	8	630*300	800-1200
800	40-60	8	850*350	1000-1200
1000	40-70	8	1000*350	1000-2000
1300	54-90	8	1300*400	1500-2500
1500	60-100	8	1500*450	3000-5000

The working principle of a wood crushing machine

• Dual crushing technology
• By combining blade cutting with high-speed airflow impact, the material is accelerated and repeatedly impacted within the airflow, achieving efficient crushing and fine material sorting, thereby significantly improving the crushing rate.
• Multi-stage crushing process
• The crushing chamber adopts a fine crushing principle device, which employs three-stage processing: coarse crushing, fine crushing, and centrifugal re-crushing, to ensure uniform particle size of the finished product and strong fine crushing capability.
• Compact structural design

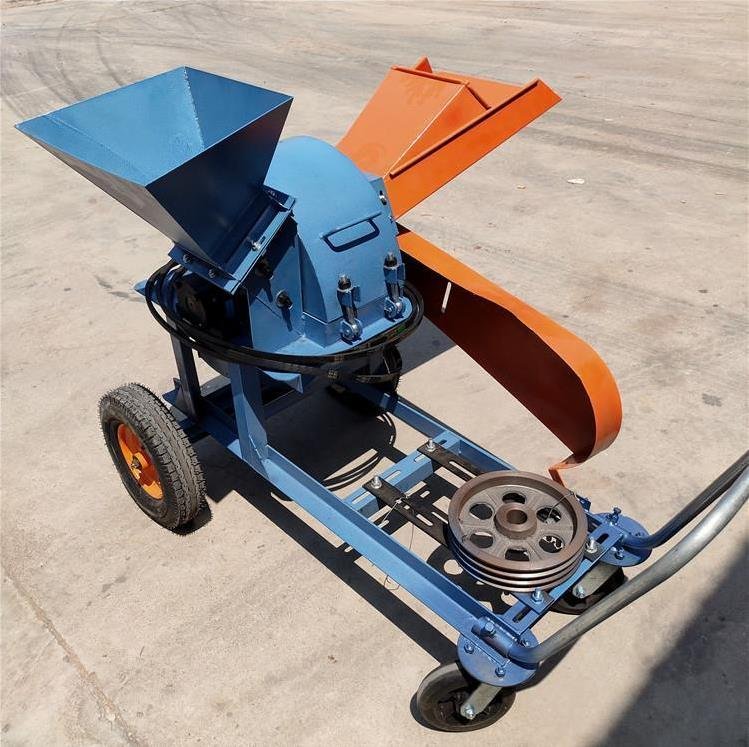

• Host composition: It consists of three parts: rotor, upper body, and lower body, integrating chip cutting device, crushing device, and fan.
• Auxiliary system: equipped with analyzers, powder collectors, and dust collectors to form a continuous operation system, eliminating traditional screening processes and simplifying processes.

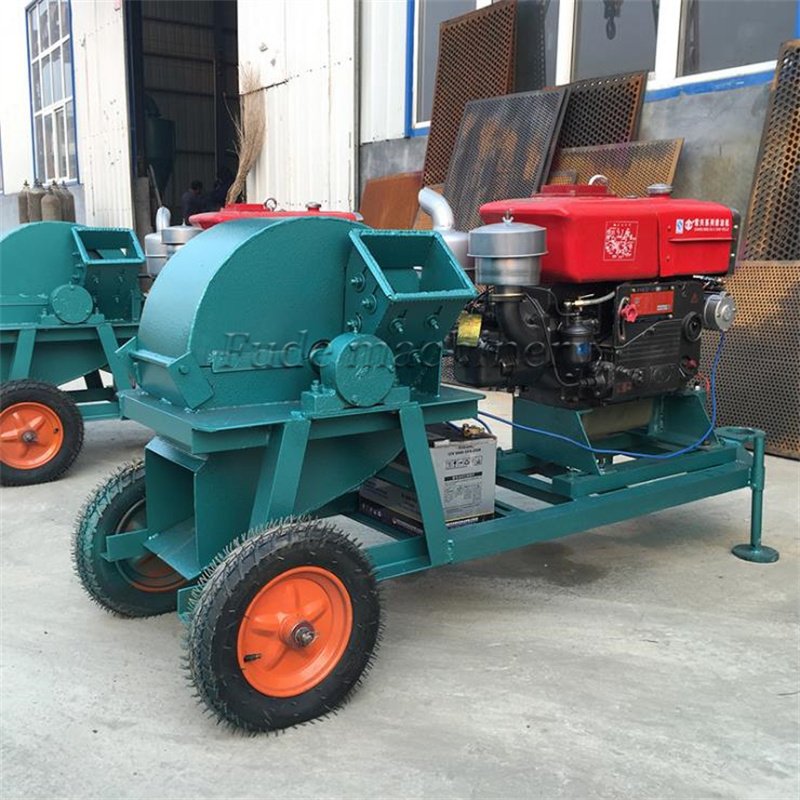

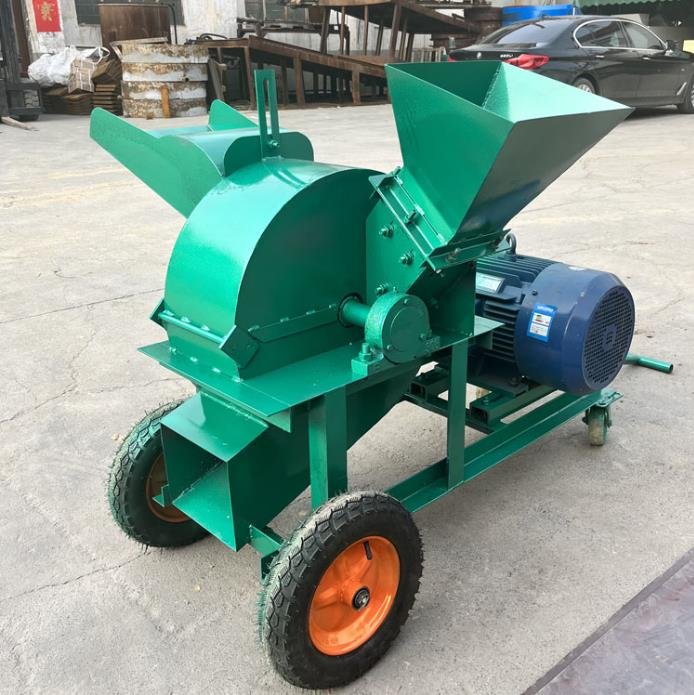

• Drive mode: single motor drive, flexible power configuration, supports motor or diesel engine, suitable for fixed and mobile operation scenarios.

Product characteristics and advantages of sawdust crusher

• Efficient and energy-saving
• The crushing efficiency is increased by more than 50% compared to traditional equipment, with low unit energy consumption and high output (models covering 400-4000kg/h).
• Compact structure, small footprint, suitable for small and medium-sized enterprises as well as individual businesses.
• Stable and durable
• The blade adopts a combination of Type 7 blade, Type 1 blade and centrifugal blade, with strong wear resistance and long service life.
• The fan impeller has undergone dynamic balance testing and runs smoothly with low noise and reduced vibration.
• Easy to operate
• Self suction feeding design ensures safe production and avoids damage to equipment caused by foreign objects such as metal blocks.
• Integrated dust removal system effectively reduces dust and improves the working environment.
• Cost-effective
• Low investment cost, controllable processing cost, suitable for large-scale production and individualized processing needs.
• The finished product has high quality and can be directly used for high-end board manufacturing or biomass energy production.

The core functions and uses of wood chippers

The slicer can process branches and twigs with a diameter of 1-30 cm, as well as fibrous materials such as bamboo, thatch, corn stalks, sorghum stalks, etc., achieving multifunctional use.

• Agriculture and Environmental Protection
• Soil improvement: Wood chips can enhance soil water permeability and retention, promoting plant growth.
• Organic fertilizer: Organic fertilizer is generated through composting and applied in agriculture and horticulture.
• Feed ingredients: Some wood chips can be used as animal feed additives after treatment.
• Industrial production application
• Edible mushroom culture medium: Crushed sawdust is an ideal substrate for mushroom cultivation.
• Board manufacturing: used as raw materials for particleboard, sawdust board, high-density board, and medium fiber board.
• Paper and pulp: Provide fiber raw materials to support pulp production.
• Biomass energy: converting sawdust into wood pellets, charcoal, or biomass fuel for power generation, heating, and industrial energy.

Crusher for sale: how to choose the equipment that suits oneself

The wood crusher produced by Zhengzhou Fude Machinery Factory integrates slicing and crushing, and can cut wood with a diameter of 1-20cm. It can also be used for cutting and crushing fibrous stem like materials such as bamboo, straw, mushroom, garden branches, corn cobs, etc. It is a new type of wood crushing production equipment.

This wood crusher is particularly suitable for processing wood chips in edible mushroom culture media, and can also be used as raw materials for the production of particleboard and sawdust board high-density boards.

• Small and medium-sized sheet metal enterprises: As the core equipment of the material preparation section, they provide stable high-quality sawdust raw materials.
• Edible mushroom planting base: on-site processing of sawdust to reduce transportation costs and ensure the freshness of the culture medium.
• Biomass energy plants: convert agricultural waste (such as corn stalks and sorghum stalks) into clean energy and achieve resource recycling.
• Individual processing households: flexible mobile operation mode to meet the production needs of commercial wood chips.
